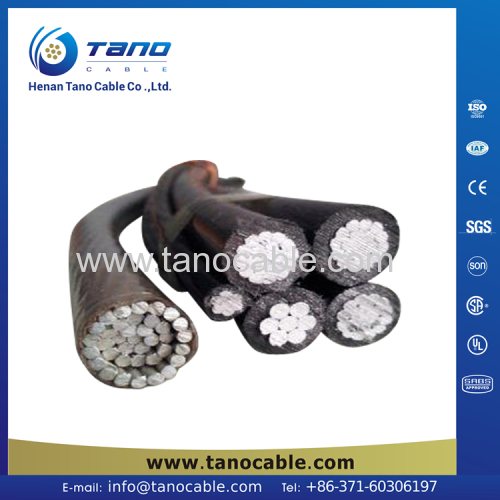

NFC 33-209 ABC Cable 3x120+70+16mm2 Overhead Twisted Aluminum Aerial Cable With XLPE Insulation

Product Description

Application of ABC Cable 3x120+70+16mm2

The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for

electrical installations with alternating power networks with nominal voltage Uo/U 0.6/1 kV or in direct

 power networks with maximum voltage according to land 0.9 kV.

The cables with supporting (bearing) zero conductors are used for building networks in city and urban

areas and the self-supporting type cables are for building distribution networks in these areas.

Cables for overhead installations may be used in different types of installations: on free hanging facades;

between posts; on fixed facades; trees and poles. Interception of forest areas without the need of

 clearance and maintenance of openings is allowed.

Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting

conductor, which is made of aluminum compound.

Self-supporting construction, suspension and carrying of the whole bundle is done by the phase

 insulated conductors.

Bundles can include one or two additional conductors for public lighting and control pair.

Standard of ABC Cable 3x120+70+16mm2

According to NF C 33-209

Conductor of ABC Cable 3x120+70+16mm2

--Phase (main) M: Al stranded compacted or Non-compacted according to NF C 33-209

--Neutral(supporting)N: AL stranded according to NF C 33-209

--Additional for lighting R: Al stranded compacted or non-compacted according to NF C 33-209

  Insulation of ABC Cable 3x120+70+16mm2

 XLPE with min. 2% carbon black content

 Construction of ABC Cable 3x120+70+16mm2

 Twisted into a bundle include:

- phase (main) insulated cores(M)

- neutral supporting insulated core ( N )

- one, two, or three additional reduced insulated cores for lighting (R)

Color of ABC Cable 3x120+70+16mm2

Black

Conductor resistance at 20℃ of ABC Cable 3x120+70+16mm2
m

Accoring to NF C 33-209

Operating temperature of ABC Cable 3x120+70+16mm2

90 ℃ continuous operation

Overload temperature of ABC Cable 3x120+70+16mm2

130 ℃ /100h/per year max./

Short circuit temperature of ABC Cable 3x120+70+16mm2

250 ℃ /5 s max./

Nominal voltage of ABC Cable 3x120+70+16mm2

AC      Uo/U 0.6/1 kV

DC               0.9 kV

Highest system voltage of ABC Cable 3x120+70+16mm2

AC , not more than 1.2kV

Min. Bending radius of ABC Cable 3x120+70+16mm2

18x D cable
